상세 정보 |
|||
| 타이어 수: | 4 | 카고 탱크 길이: | 1420*800*1060mm |
|---|---|---|---|
| 순방향 쉬프트 수: | 3 | 정격 하중 용량: | 300kg |
| 지구력 용량: | 4h | 충전 시간: | 5-6H |
| 강조하다: | electric Starting mini dump truck,4 Tire electric mini dump truck,4 Tire mini dumper electrico |
||
제품 설명

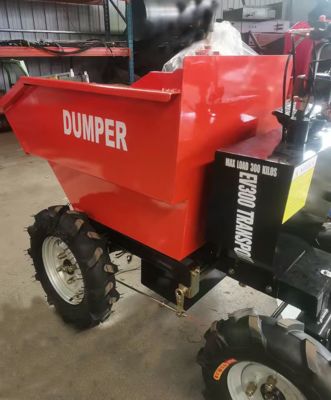

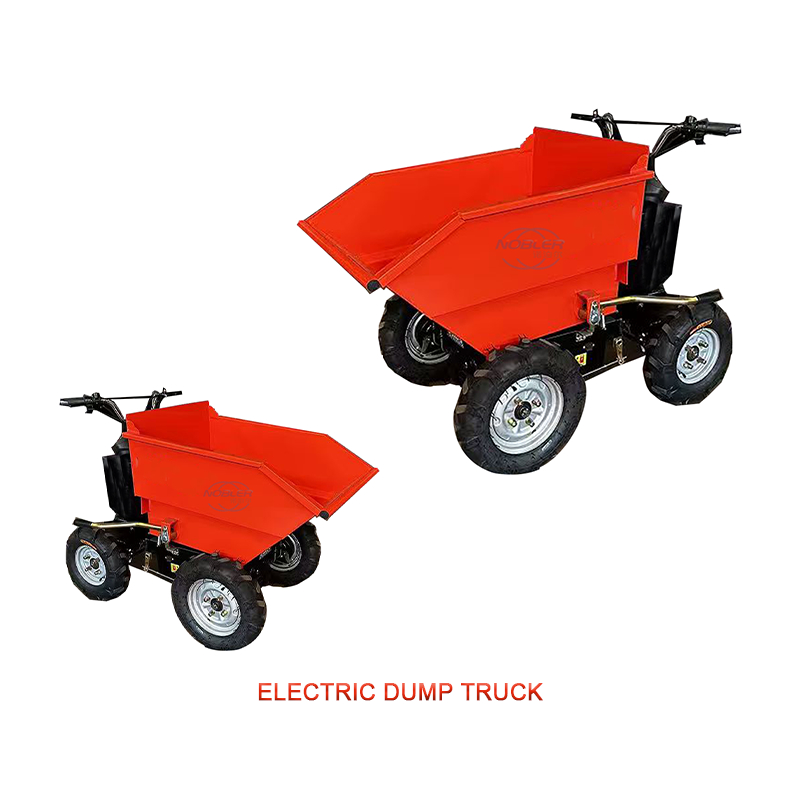

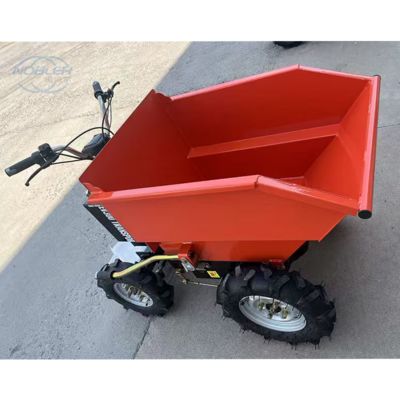

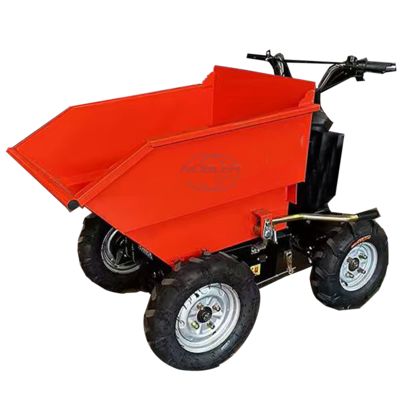

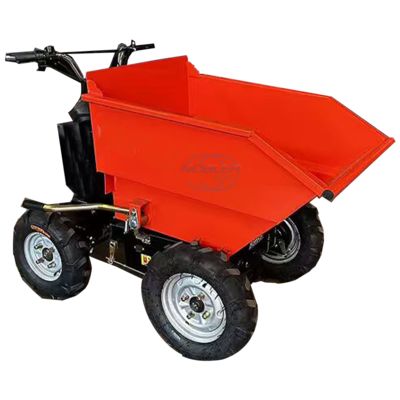

The mini electric dump truck from Chinese factories has a load capacity of 300 kg, three forward gears (high, medium, and low), and a foldable pedal at the rear.
This electric dump truck is a versatile and efficient mini truck dumper designed for various material handling needs. Powered by electricity, it offers environmentally friendly operation with smooth and quiet performance. Ideal for construction sites, farms, and small-scale logistics operations.
The wheel dumper features four-speed adjustable functions, allowing operators to select optimal speed based on load and working conditions. The user-friendly design includes a standing foot pedal for convenient, labor-saving operation.
The truck bed has an inner diameter of 61 centimeters, providing ample space for transporting materials like sand, gravel, or agricultural produce. The manual dumping mechanism enables quick and efficient material discharge.
| Brand | NOBLER |
|---|---|
| Model | NBE001 |
| Rated Load Capacity | 300kg |
| Overall Dimensions | 1408*740*965mm |
| Turning Radius | 1.5m |
| Dead Weight | 170kg |
| Hopper Capacity | 0.23m³ |
| Endurance Capacity | 4h |
| Charging Time | 5-6h |
| Charging Voltage | 220V/50Hz |
| Climbing Angle | 15° |
| Battery Manufacturer | TIANENG Graphene |
| Battery Model | 48V20ah |
| Motor Power | 700W |
| Tire Model (Front) | 4.00-10 |
| Tire Model (Rear) | 4.00-8 |
| Tire Pressure | 0.25mpa |
| Forward Speed (High) | 15km/h |
| Forward Speed (Medium) | 12km/h |
| Forward Speed (Low) | 9km/h |
| Reverse Speed | 6km/h |
| Walking Mode | Self-propelled |
| Tipping Method | Manual lifting |
| Starting Mode | Electrical starting |
Qingdao Nobler Special Vehicles Co., Ltd., established in 2015, is a modern machinery manufacturing enterprise specializing in research, development, production, and sales. The company produces various vehicles including flower trolleys, lawn mowers, electric dump trucks, and customized sheet metal products.
With a factory area exceeding 20,000 square meters, Nobler utilizes advanced production lines including CNC stamping and welding robots, achieving an annual production capacity of over 200,000 units. The company obtained ISO9001 international quality management system certification in 2021 and was recognized as a national high-tech enterprise.
